Spindle Liner — CNC Lathe
$74.95
Sale price
$74.95
Regular price

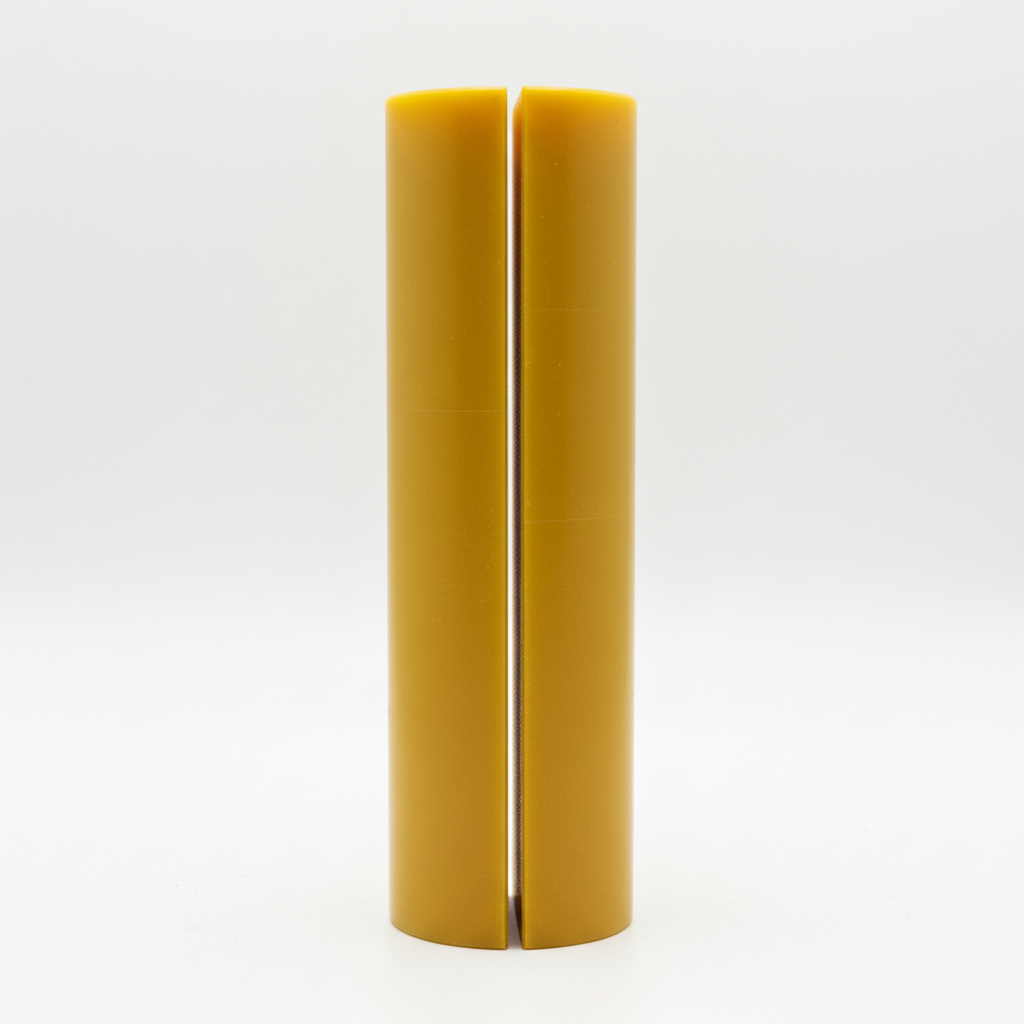

A precision-ground polyurethane spindle liner that supports bar stock inside the lathe spindle bore during bar feed operation, eliminating vibration, reducing noise, and protecting spindle bearings from radial loads generated by off-center or slightly bent bar material.
- Split design for tool-free installation
- Engineered to match standard spindle bore diameters
- Rated for bar feed speeds up to 5,000 RPM
- Critical for achieving tight tolerances and superior surface finish in high-production CNC turning
Quiet the spindle. Protect the bearings. Hit your tolerances.
Technical Specifications
| Property | Value |
|---|---|
| Material | Precision-ground polyurethane |
| Shore Hardness | 85A |
| Design | Split (tool-free installation) |
| Maximum Speed Rating | 5,000 RPM |
| Bar Stock Diameter Range | Specify bore diameter at order |
| Spindle Bore Compatibility | Standard CNC lathe spindle bore diameters |
| Vibration Damping | Excellent (polyurethane elastomer) |
| Coolant Resistance | Water-soluble and semi-synthetic coolants |
| Operating Temperature | -10°C to +70°C |
| Installation | Tool-free split installation |
| Applications | CNC lathe bar feed operations, high-production turning |
